By Kjeldahl method is of prime importance in our day to day life. It is one of the important parameters to be determined in industries like – Food, Feed, Milk / Dairy, Pharmaceutical, Soils and Fertilizers, Water / Effluent / Sludge treatment, Vaccines, Petroleum products, Rubber products etc.
TKN – Total Kjeldahl Nitrogen- is one of the primary methods and most widely used method of choice by millions even as on today. This wet chemistry method has been improved and now a day’s become far more efficient, safe, low cost and environmental friendly then it used to be in earlier days. Thanks to new technologies incorporated in latest instrumentation to make it effortless and more accurate, sensitive and productive method.
Kjeldahl method is primarily divided in to three steps – DIGESTION, DISTILLATION & TITRATION followed by result calculations and reporting. We provide complete solution for Total Kjeldahl Nitrogen (TKN) in all three steps; customer can select models depending upon their sample load, priorities and budget. They can select solutions for individual steps or for complete package as per their choice.
Distillation Units (UDK Series)
The UDK Series Distillation Units are designed to meet the most challenging demands and requirements for diverse applications, according to international standards: Kjeldahl nitrogen TKN, proteins, ammoniacal nitrogen, nitric nitrogen, (Devarda), phenols, TVBN and volatile acids, cyanides, and alcohol content. Five different UDK models are available with different automation levels to match any laboratory requirements

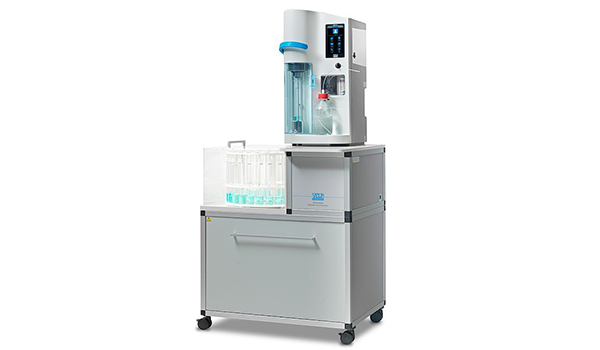

Automatic Distillation & Titration - UDK 169
The UDK 169 is a fully automated distiller with an integrated colorimetric titrator for premium performance and continuous operation. It offers the highest sample throughput available when connected to the AutoKjel autosampler. Just load your samples and walk away: the system will analyze all the samples unattended and store the results.
FULLY AUTOMATED ANALYSIS Reagents addition, steam output setting, automatic distillation and titration ensuring the best performance.
AUTOKJEL AUTOSAMPLER For a highly productive system capable of autonomously processing up to 24 samples.
EXCELLENT USABILITY 7" high resolution color touch screen and easy to use multitasking software.
EXCLUSIVE TITANIUM CONDENSER AND PATENTED STEAM GENERATOR Two systems developed to ensure high performance and to guarantee safe working conditions.

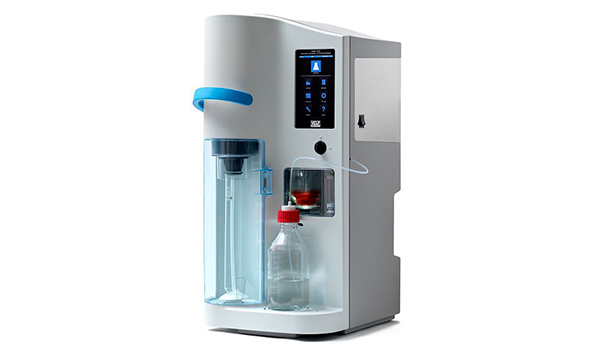

Automatic Distillation & Titration - UDK 159
The UDK 159 combines all the advantages of a fully automatic distillation with the added benefits of integrated colorimetric titration (AOAC approved) for a high-performance all-in one system.
FULLY AUTOMATED ANALYSIS Reagents addition, steam output setting, automatic distillation and titration ensuring the best performance.
EXCELLENT USABILITY 7" high resolution color touch screen and easy to use multitasking software.
EXCLUSIVE TITANIUM CONDENSER AND PATENTED STEAM GENERATOR Two systems developed to ensure high performance and to guarantee safe working conditions.

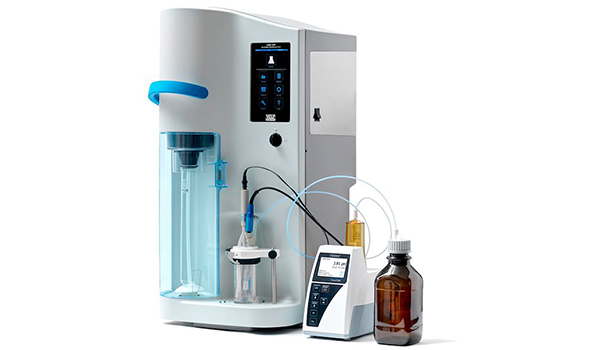

Automatic Distillation & Titration - UDK 149
The UDK 149 is an automatic distillation unit with external potentiometric titrator connection that ensures higher sample throughput, flexibility and premium precision.
EXTERNAL POTENTIOMETRIC TITRATOR The combination with an external potentiometric titrator offers a very convenient automatization of the Kjeldahl method and ensures versatility, accuracy and precision.
EXCELLENT USABILITY 7" high resolution color touch screen and easy to use multitasking software.
EXCLUSIVE TITANIUM CONDENSER AND PATENTED STEAM GENERATOR Two systems developed to ensure high performance and to guarantee safe working conditions.
EXTERNAL POTENTIOMETRIC TITRATOR connectivity is optimized for most common potentiometric titrators to guarantee fully automated operations. The optional TITROLINE 5000/7000 automatic titrator is very compact for simple routine titrations. GLP compliant results can be documented on a connected printer / network printer or USB memory stick or on LIMS software.

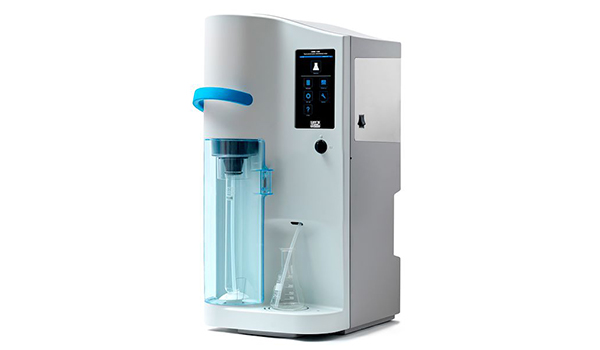

Semi-Automatic Distillation Units - UDK 139
Semi-automatic distillation for Kjeldahl protein determination, Non-Protein Nitrogen (NPN), volatiles and more. Excellent value for money with high reliability and advanced performance.
HIGH RELIABILITY The semi-automatic process ensures efficient and advanced performance.
EXCELLENT USABILITY 7" high resolution color touch screen and easy to use multitasking software.
EXCLUSIVE TITANIUM CONDENSER AND PATENTED STEAM GENERATOR Two systems developed to ensure high performance and to guarantee safe working conditions.

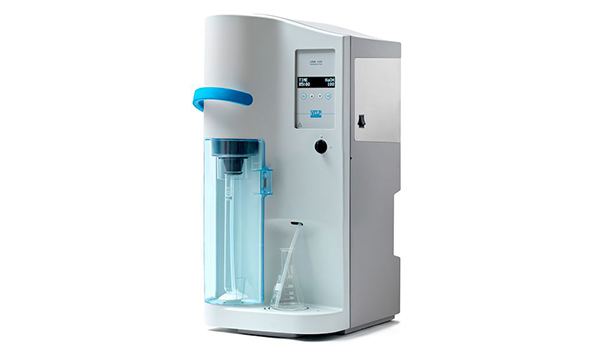

Semi-Automatic Distillation Units - UDK 129
Entry-level distillation for Kjeldahl protein determination, Non-Protein Nitrogen (NPN), volatiles and more. Simple and reliable solution with unique features.
HIGH PRECISION PUMPS To ensure constant accurate dosing of reagents.
EASY-TO-USE The bright LCD display and easy-to-use menu, guide the operator in setting the instrument working conditions.
EXCLUSIVE TITANIUM CONDENSER AND PATENTED STEAM GENERATOR Two systems developed to ensure high performance and to guarantee safe working conditions.
