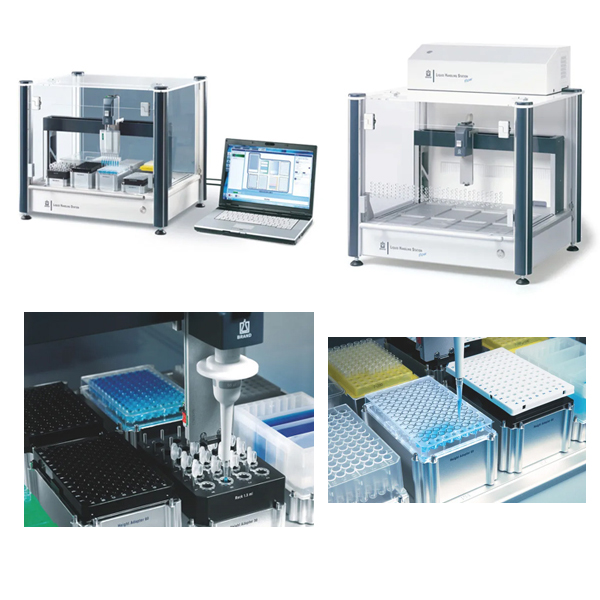

Pipetting robot Liquid Handling Station

The Liquid Handling Station provides maximum flexibility for small and medium sample throughput and varied pipetting tasks. It closes the gap between electronic pipettes and large, expensive equipment.

The pipetting robot makes automatic pipetting highly precise, particularly easy and supports pipetting routines. Consistency is key in scientific research, and our Pipetting Robots are built to deliver just that. With the pipetting robot you save time in PCR, qPCR, ELISA, cherry picking and many other applications. Discover our exclusive range of Pipetting Robots and accessories like roboter tips or liquid ends hat are designed to revolutionize your scientific experiments and streamline your research processes.

Seven ANSI / SLAS formatted workplaces can be freely assigned, including PCR tubes and strips, micro centrifuge tubes, reservoirs, and 96- or 384-well plates. Liquid ends are available in single-channel sizes and 8-channel versions for contact-free fluid delivery. The Liquid Handling Station's compact design and space-saving front door make it an ideal fit where benchtop space is limited.

With an excellent price/performance ratio and straightforward operation, the system is economical for low and medium throughput labs.

The Handling Station is available in two option; Pipetting robot Liquid Handling Station and Liquid Handling Station Flow, Pipetting Robot with Flow Box; The standard consignment Includes; motor control unit, operating software, user manual, power cable, USB cable, documentation, and on-site training. Liquid Handling Station flow additionally with Flow Box filtration unit.

Accessories & Spare Parts

With the Liquid Handling Station, you have maximum flexibility for small and medium sample sizes and changing pipetting tasks. It closes the gap between electronic pipetting and complex, expensive large systems Seven ANSI/SLAS format work stations can be configured as necessary, for example with individual tubes, 8x PCR tube strips, reservoirs, 96-well and 384-well plates. Liquid ends are available in single-channel sizes and 8-channel versions for contact-free fluid delivery. Thanks to its compact design and space-saving front door, the Liquid Handling Station also fits in small laboratory areas.

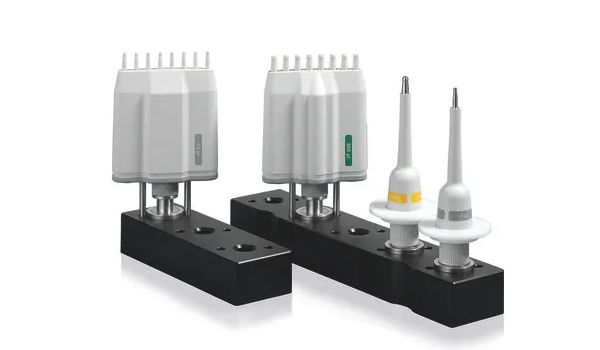

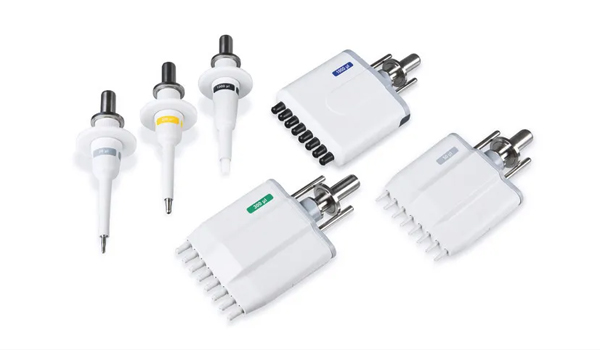

Liquid Ends For Liquid Handling Station

Single Channel: 1 to 50 µl, 10 to 200 µl and 40 to 1000 µl
8 Channel : 1 to 50 µl, 20 to 300 µl and 40 to 1000 µl

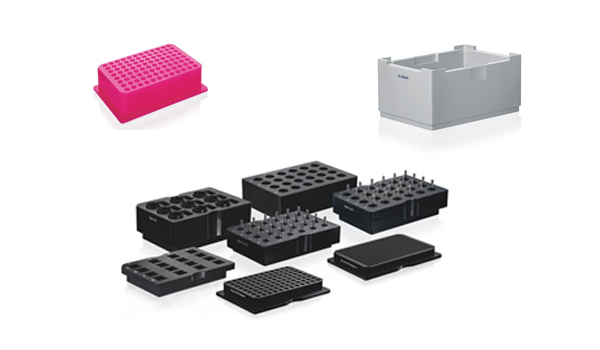

Adapter For Liquid Handling Station

Tip Adapter-Cast Aluminium, Adapter Rack-16 Cuvettes, Reservoir Rack-Aluminium, PCR Adapter for 96 Well Plate, PCR Adapter for 384 Well, Adapter Rack-24 of 1.5ml Tubes, Adapter Rack- 16 Tubes of 1.5ml, Adapter Rack- 24 Tubes of 0.5ml, Adapter Rack- 9 Tubes of 5ml, Adapter Rack- 24 Tubes of 12x75mm PCR Cooler Rack-96 Well,

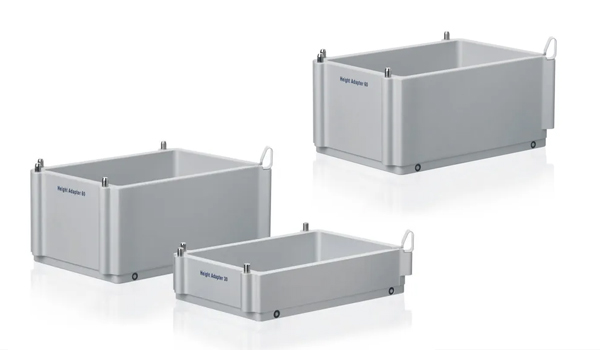

Height Adapter For Liquid Handling Station

Holder For Liquid Ends Single Channel And Multichannel

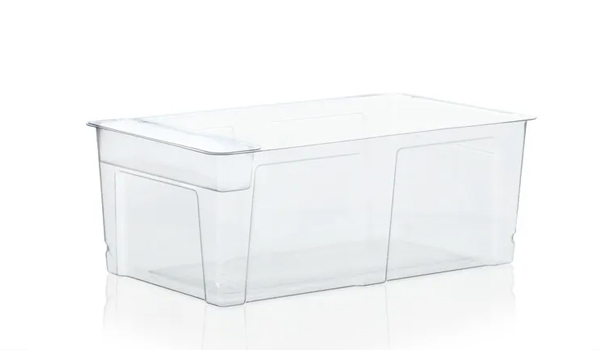

Waste Container Pet Quality For Liquid Handling Station

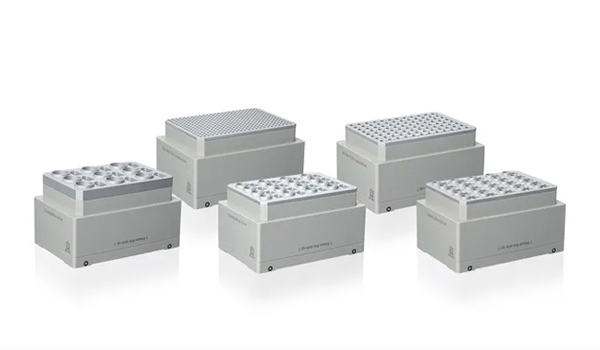

Cooling Block, Passive Cooler, Pp / Aluminium

Keep your samples and media cool for up to three hours with the Cooling Blocks by BRAND. They are designed in ANSI/SLAS format to fit robotic systems like the Liquid Handling Station. All well positions are cooled homogenously. The Cooling Blocks work as a passive heat sink which makes them quick and easy to use without additional power supply. Cooler Blocks are available for 0.5ml Tubes, 1.5 ml Micro Tubes, 5ml Micro Tubes, 96 Well Plates, 384-Well PCR Plates

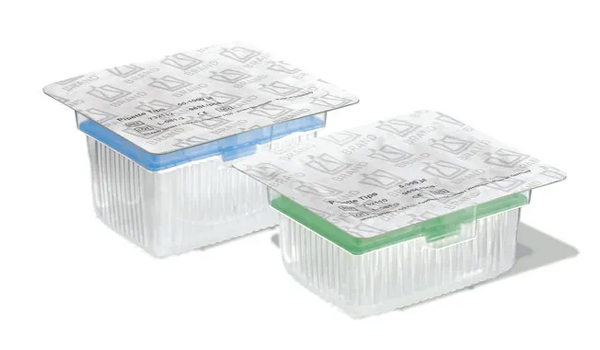

Robotic Tips & Robotic Filter Tips, Pp, Racks, Tip Racks, (Refill System), Bio-Cert Liquid Handling Quality (With And Without Sterile):

Pipette tips and filter tips from BRAND offer reliable quality for precise and demanding analyses with the pipetting robot Liquid Handling Station. The Pipette tips and filter tips from BRAND offer reliable quality for precise and demanding analyses with the pipetting robot Liquid Handling Station. The raw materials are free from DiHEMDA und Oleamid. Tips are manufactured at BRAND under monitored cleanroom conditions and are automatically packaged. No parting agents or demolding aids are used.

For use with pipetting robots, tips are required that are matched to the robot's mode of operation in terms of geometry and surface properties. BRAND robotic pipette tips and robotic filter tips meet all requirements for use with the Liquid Handling Station pipetting robot.

BIO-CERT® LIQUID HANDLING QUALITY: Free of human DNA, RNase, DNase, Pyrogens, PCR-Inhibitors and ATP

Robotic Racked, Tip Rack (Refill system) are available for:
1 to 50 µl, 10 to 200 µl, 10 to 300 µl, and 40 to 1000µl volume range.

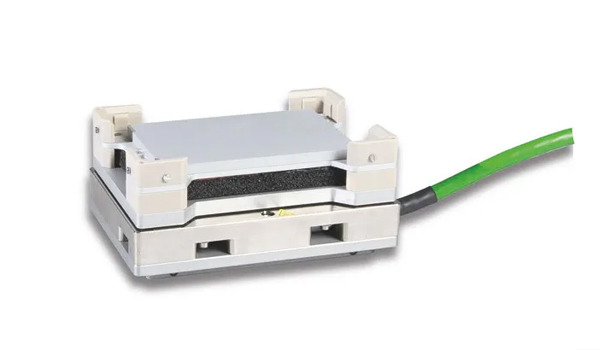

Shaking And Heating Module Teleshaker 95 For Liquid Handling Station

With the Teleshake 95 module, shaking and heating of samples in microplates and PCR consumables is possible directly inside the Liquid Handling Station pipetting robot from BRAND, without removing the plates from the robot. This saves time and reduces the risk of sample contamination. Applications include sample incubation and intensive stirring of samples during reaction at room temperature or higher. Thanks to its modular design, installation of the heater/shaker is easy. Simply place it on the worktable of the Liquid Handling Station and connect it via a USB port to a PC or notebook and the included controller

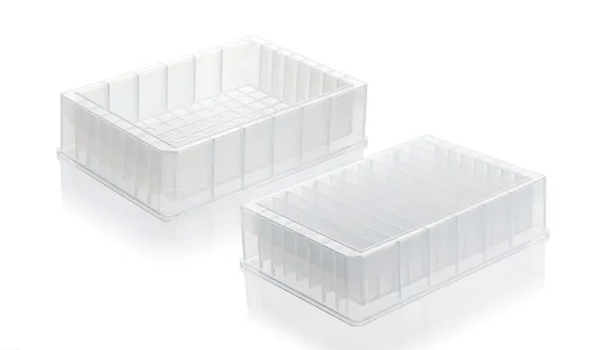

Regent Reservoir, Pp, Base Shape Pyramidal, Bio-Cert Certified Quality

Reagent reservoirs for automation / Liquid Handling Station pipetting robot BIO-CERT® CERTIFIED QUALITY: Free of human DNA, RNase, DNase and Pyrogens.

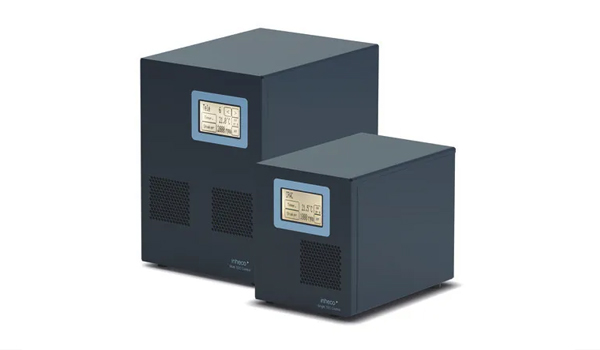

Controller For Tele Shaking 95

Single TEC Controller – 1 Block Slot Module and
Multi TEC controller – 1 Block Slot Module

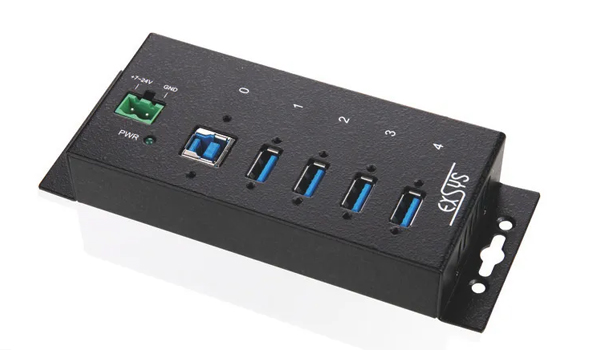

USB 3.2 Hub With 4 Ports For Liquid Handling Station

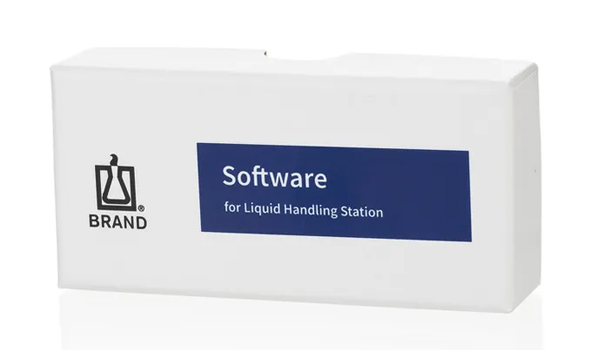

Software Licence For Liquid Handling Station

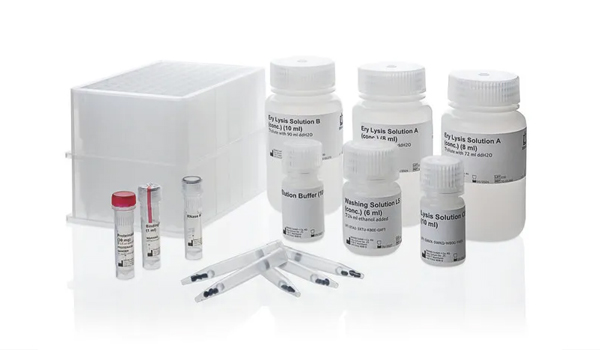

Smart Extraction Lhs-Kit, Dna Extraction Kit

The Smart Extraction LHS-Kit has been designed for automated isolation of high molecular weight DNA (HMW) from bacteria, yeast, tissue samples, whole blood and rodent tails.

The kit is based on the patented Smart Extraction Technology using Smart Modified Surfaces invented by IST Innuscreen GmbH. The extraction process is based on the adsorption of the genomic DNA onto Smart Modified Surfaces and does not require magnetic particles for DNA binding. This means that the DNA binds directly to the surface of the modified BRAND tips. After washing, the genomic DNA is eluted from the Smart Modified Surfaces and is ready for use in subsequent downstream applications. The entire extraction process requires only simple mixing by up and down movement of the modified BRAND tips.

Smart Extraction Lhs-Kit 1 For 8 Samples,
Smart Extraction Lhs-Kit 2 For 16 Samples And
Smart Extraction Lhs-Kit 3 32 Samples.

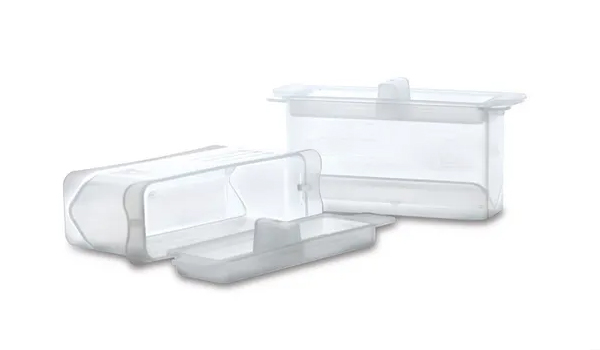

Regent Reservoir With Cover, Pp, Graduated Certified Life Science Quality

For manual pipetting and automation. PP, 40 ml working volume, V-bottom, low dead volume, graduated.

CERTIFIED LIFE SCIENCE QUALITY: Virgin raw materials, Manufactured under controlled room conditions, Intensive in-process controls, Visual inspections, Batch management, Final product inspection, Proven functionality.

Available in PP and sterile material for 40ml volume range
