Fractional distillation is a technique used to purify solvents, chemicals, natural products, petroleum, biodiesel, crude oil and other materials.
The distillation column separates various components according to their boiling points. The more efficient the distillation column, the better the separation.
Fractionating can be done in either a traditional packed distillation column or in a spinning band distillation column. B/R offers both types of distillation columns.

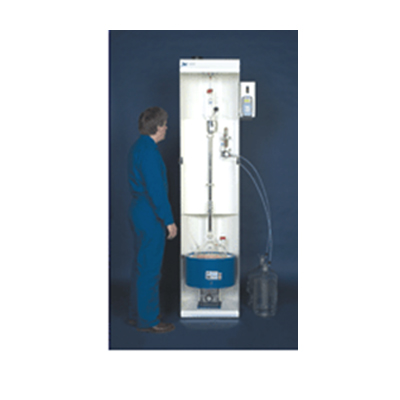

Model 9600
Model 36-100

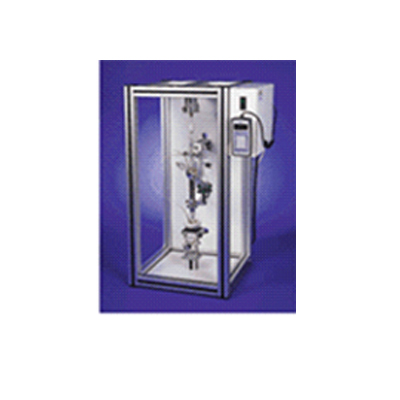

Model 800
Features of Spinning Band Distillation Systems:
High Efficiency
This distillation systems high theoretical plates in relatively lower length of column at atmospheric pressure. The high number of theoretical plates allows it to produce extremely high purity materials and making difficult separations on small sample sizes.
Lower hold up volume
Since the column only holds a small amount of sample, it can distill small sample sizes and give a high degree of separation.
Customized for your Application
All the Spinning band distillation systems can be configured according to your needs. Automation, vacuum systems, fraction collectors and other accessories can be integrated into the distillation system as needed. The result is a distillation apparatus customized to your specific needs.
Easy to use
The distillation process is fully automated from beginning to end, minimizing the time needed to operate the equipment. Easy programming of parameters makes you feel like a distillation expert. Heating, collecting of distillate and shut down of equipment at completion are all done automatically all controls from a PC.
Common applications include
- Crude Oil Distillation
- Petroleum Distillation
- Biodiesel Distillation
- High Purity Fractional Distillation
- Essential Oil Purification
- Vacuum Distillation
- Research Applications
We also offer Pilot scale Packed column SS distillation systems from 50 liter to 1000 liters with separation power up to 45 theoretical plate. Kindly ask for more details.
Here is the overview of Fractional Distillation systems offered by us:
| Feature | Micro Distillation (800) | Mini Distillation (36-100) | Lab Scale Distillation (9600) | Pilot Scale SPC |
|---|---|---|---|---|
| Distillation Column Diameter | 7 mm | 8 mm | 21 mm | 50-150 mm |
| Distillation Column Length (Standard) | 20 cm | 90 cm | 90 cm | 110 cm |
| Maximum Theoretical Plates (Spinning Band Type) |
Teflon 30 Stainless Steel 15 |
Teflon 200 Stainless Steel 85 |
Teflon 50 Stainless Steel 15 |
15, 30 or 45 |
| Boiler Sizes | 10 to 100 ml | 100 to 1000 ml | 1 to 50 liters | 50 to 1000 liters |
| Material of Construction | Glass and Teflon | Glass and Teflon | Glass and Teflon | Stainless Steel |
| Batch Distillation | Yes | Yes | Yes | Yes |
| Automatic Control | Yes | Yes | Yes | Yes |
