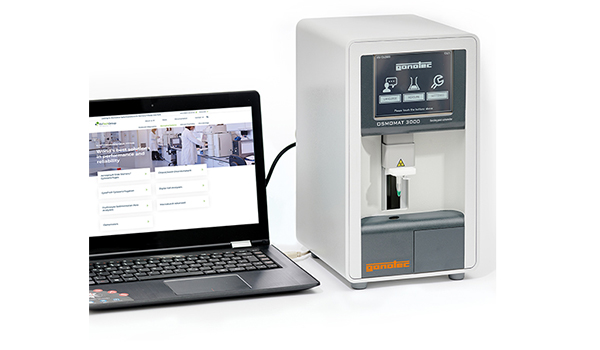

Advantages of the OSMOMAT® 3000 Product Series
  • Ease of use: Controlled with a touch screen display and step by step user-guidance for all measurement functions.
  • Calibration: Automatic, two or three point calibration.
  • Design: Robust design that makes it easy to handle and maintain.
  • Data Tracking: Built in printer for physical copies and USB or RS232 connections for digital copies. Last results remain available after switching to automatic stand-by mode.
  • Quality Management: QM assistance for the laboratory supervisors.
  • 21 CFR Parts 11 compliance: Yes, with optional PC based software

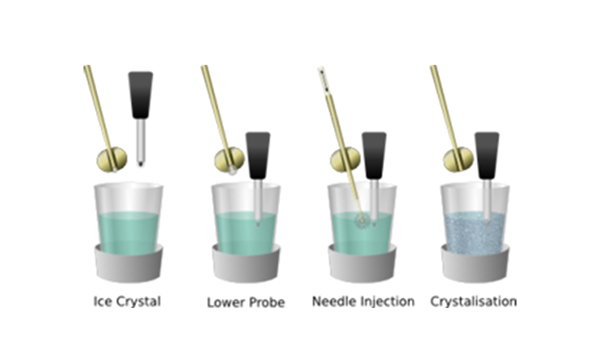

Measurement Technique

The total osmolality of aqueous solutions is determined by comparative measurements of the freezing points of pure water and of solutions. Whereas water has a freezing point of 0°C, a solution with saline concentration of 1 Osmol/kg has a freezing point of -1.858°C.

Specifications and Important Information
  • Models: 3000 / 3000 M / 3000 D / 3000 D-M
  • Sample Volume: 15/50µl
  • Measurement Range: 0 to 3000 mOsmol/kg H2O
  • Resolution: 1 mOsmol/kg H2O
  • Measurement Time: ~60 seconds
  • Linearity: Deviation less than ±1% in the calibrated range
  • Display: 5,7’’ LCD – Touch Screen
  • Integrated Printer: Yes, with 3000 D & 3000 D-M models only
  • Interfaces: RS232 & USB (not for model 3000basic)
Applications
  • Electron microscopy
  • Biotechnology
  • Research
  • Food and Beverage
  • Botany
  • Pharmacy
  • Dispensaries
  • Manufacture Quality Control

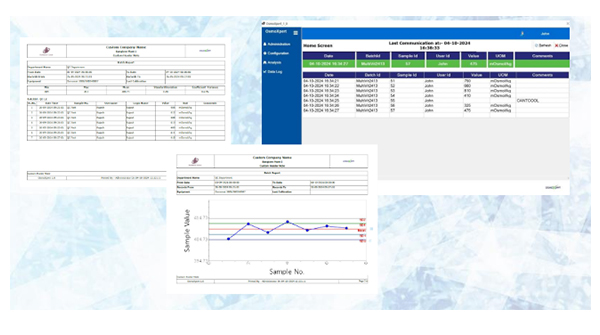

OsmoXpert Software – 21 CFR part 11 compliant

The Expert companion for osmometer – OSMOMAT 3000

OsmoXpert comply with 21CFR part 11 norms

Desktop based GUI application to interface osmometer and capture live test results in a non-networked environment

Display and store the recorded data and save it securely

Capability of Data Logging, Data Management, Statistical Calculations, Data Storage - Retrieval and Quality Control & Calibration data records retention

Has multiple system access controls, such as User Authentication, password controls, and role-based access, defined as per privileges. Example: Operator, Reviewer, Approver and Administrator Secure and time-stamped Traceability and Audit Trail for actions undertaken on the application Printing of reports with e-records and digital e-signatures (Reviewer/Approver) Any error codes generated during testing are also logged and displayed on screen to review. (No delete or edit possible)

All data and settings can be backed up in encrypted form. And possible to restore software using this backed up data securely
