Ultra Clear TouchPanel (TP) Electronic Dispenser (ED) TWF Series

High Performance RO is used to produce pure water from softened or hardness-stabilized drinking water. The product water is produced by the process of reverse osmosis and removes more than 98% of the constituents contained in the feed water. Further step of Mixed bed Deionization cartridge frees product water from Salts and remaining particles. RO DI water is diverted to standard tank (30 ltr and 60 ltr versions available). This RO DI water is further processed UV radiation to reduce TOC and produce Ultra Pure water from dispenser. Systems are available in flow rates of 10 LPH.

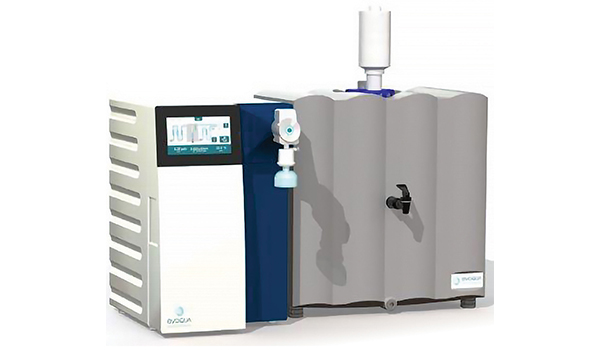

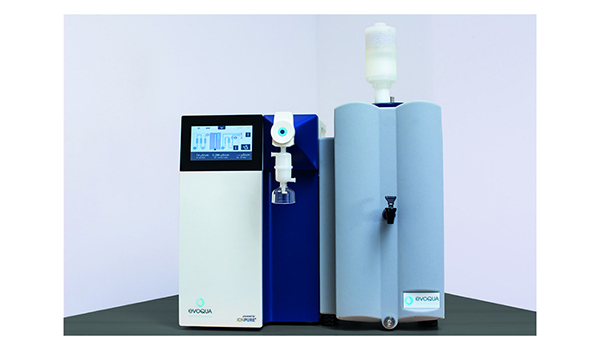

The Ultra Clear TP ED TWF series is equipped with an electronic dispenser for precise, volume-controlled dosing of up to 2 l/min of ultra pure water. The improved and intuitive software allows an easy- to-use dispensing process - directly and without delay.

  • Up to 2L/Min of ultra-pure water – even with endotoxin-filter
  • Delivered from the factory ready for operation with initial set of cartridges.
  • Modbus connectivity to communicate with Building Management System (BMS)
  • Printer port
  • Inline TOC monitoring of Ultrapure water
  • Separate model available with inline UF module.
  • Tanks are equipped with submersible UV lamp and CO2 vent filter as standard.

Ultra Clear TouchPanel (TP) Electronic Dispenser (ED) TWF EDI Series

Same system as above but instead of DI cartridge EDI cell is used to ensure economical producing of type 2 water without having to change DI cartridge. Systems are available in standard flow rate of 20 LPH.

Part Number Model
W3T276075Ultra Clear TP ED 10 TWF 30 UV TM
W3T276076Ultra Clear TP ED 10 TWF 30 UV UF TM
W3T276077Ultra Clear TP ED 10 TWF 60 UV TM
W3T276078Ultra Clear TP ED 10 TWF 60 UV UF TM
W3T276079Ultra Clear TP ED 20 TWF EDI 30 UV TM
W3T276080Ultra Clear TP ED 20 TWF EDI 30 UV UF TM
W3T276081Ultra Clear TP ED 20 TWF EDI 60 UV TM
W3T276082Ultra Clear TP ED 20 TWF EDI 60 UV UF TM
W3T276084Ultra Clear TP ED 20 TWF EDI 80 UV UF TM
