Endecotts sample processing equipment helps you handle your samples faster and with more ease. Our dividers ensure you operate with a representative sample when the sieving process begins.

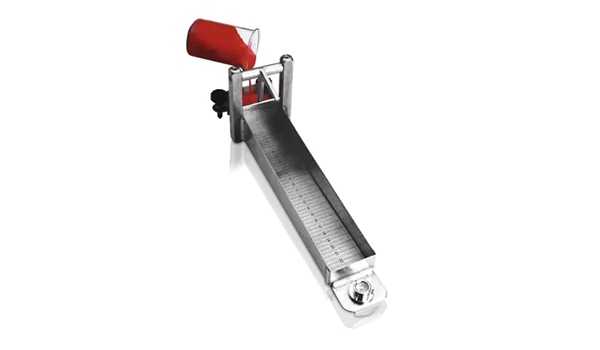

CONSISTOMETER
The Consistometer is a low cost, durable, instrument for accurately checking laboratory or production samples against consistency, viscosity or flow rate standards.
Salient Features
- Low cost
- Ease of use
- Suitable for a variety of tests
- Provides a consistent platform for test
- Requires up to 100 ml of sample
- 316 food grade stainless steel construction
- Engraved graduations for accurate results
- Leveling screws and spirit level enable accurate set up
- Available as standard or extended version
- Application: checking laboratory or production samples against consistency, viscosity or flow rate standards
Technical Data
| Application | checking laboratory or production samples against consistency, viscosity or flow rate standards |
| Length | standard version: 355 mm extended version: 415 mm |
| Trough length | standard version: 240 mm extended version: 300 mm |
| Width | standard version: 83 mm extended version: 83 mm |
| Height | standard version: 110 - 139 mm extended version: 110 - 139 mm |

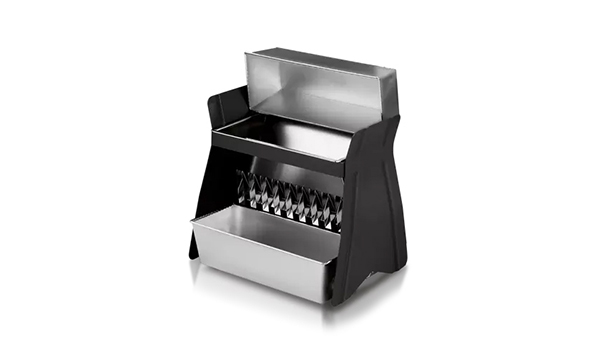

SAMPLE DIVIDERS
Endecotts hand held sample dividers will subdivide material samples into two smaller portions by a single pass.Further subdivisions can be attained by multiple passes.
Each subdivision created with an Endecotts sample divider retains the characteristics of the original sample.
Two different sample divider versions are available: One with 6.3 mm slot width and one with 12.5 mm slot width
Salient Features
- Unit consists of divider plus 3 receiving boxes
- Stainless steel with slot widths
- Will subdivide material samples into two smaller portions by single pass
- Each subdivision retains the characteristics of the original sample
Technical Data
| Applications | sampling and sample dividing |
| Slot size | SD 6.5: 6.3 mm SD 12.5: 12.5 mm |
| Number of slots | SD 6.5: 12 SD 12.5: 18 |
| Field of application | agriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals |
| Feed material | bulk materials |
| Material feed size* | SD 6.5: ~ 4 mm SD 12.5: ~ 8 mm |
| Batch size / feed quantity* | SD 6.5: <= 3 l SD 12.5: <= 3 l |
| Number of divisions | 2 |
| W x H x D | SD 6.5: 30 x 27 x 25 cm SD 12.5: 30 x 27 x 25 cm |
| Net weight | SD 6.5: ~ 3.5 kg SD 12.5: ~ 3.5 kg |
depending on feed material and instrument configuration/settings
